Safety Electronic Lock

Door Interlock Switch

Product Features

Safety Electronic Lock Door Interlock Switch (EMD Series)

1. Safety electronic lock door interlock switch for GATE control of

hazardous machinery and sections.

2. IEC 60947-1:2020, EN 60947-5-1:2017 Manufacture of Global Standards. 3. S1-G-1, KS C IEC 60947-5-1 Manufacture of Korea Occupational Safety and Health Standards. 4. Dangerous zone GATE control is possible with 1300N lock strength. 5. The connector terminal method can reduce the speed of wiring work.

6. Safety features are enhanced when used in conjunction with the

electronic lock door interlock system for human error prevention.

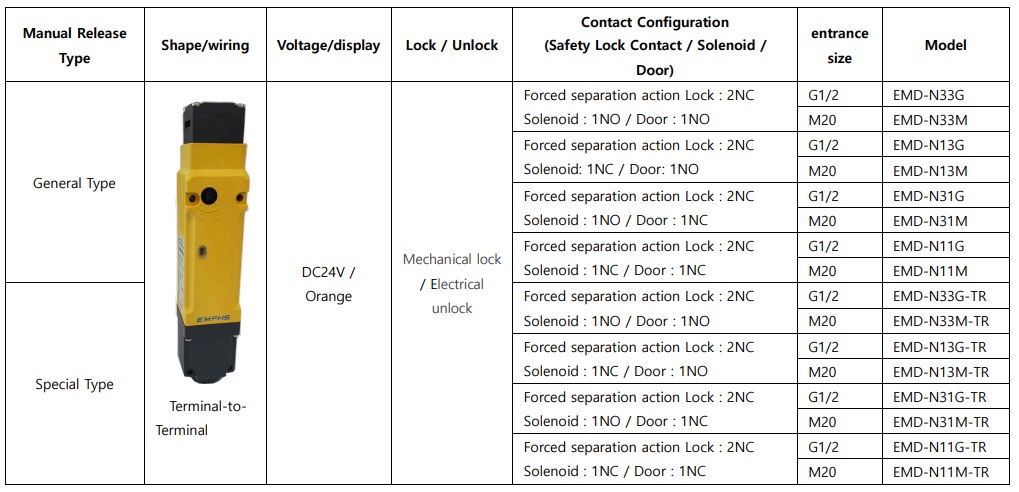

1 . Product Type (EMD Series)

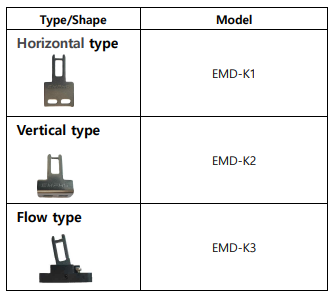

2 . Safety operation key (EMD-K Series)

3 . Rated/Specifications (EMD Series)

Model Name	EMD – N □ □ - □
Locking Strength	1,300 N
Rated Voltage	DC24V , class2
Consumption Current	at the time of inpu : 0.26A ,on a regular basis:≤0.2A (After about 5 seconds of power input)
Insulation Rating	Class 2
Protective Structure	IP65(Excluding the Head),EN60529
