Introducing products that contain the values and technology of EMFHS Co., Ltd.

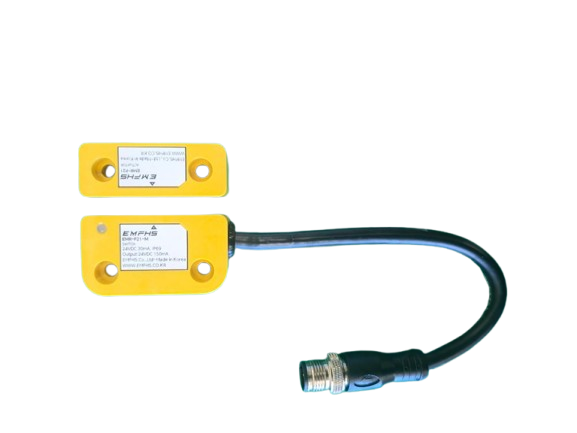

RFID Non-contact Safety Door Switch (EMR Series)
1. No dedicated controller required – Operates using RFID technology.
2. Wide safety operating distance of over 8 mm, ideal for doors with
larger gaps or fence doors. No malfunction caused by vibration.
3. Dual OSSD outputs enable implementation of high safety
performance levels.
4. IP67-rated waterproof design, suitable for use in various
environments such as cleaning equipment.
5. Compliant with safety standards EN ISO 13849-1 and IEC 62061 /
IEC 61508. When connected to a Safety PLC and Safety Controller,
capable of achieving PLe, Cat.4, SIL3 system ratings.
6. Manufactured to global standards IEC 60947-1:2020, EN 60947-5-2 /
5-3, and IEC 14119.
7. Compliant with Korean safety regulations S1-G-1 and
KS C IEC 60947-5-3.
| Model | Description | Remarks |
| EMR-F21-M | M12 Connector Type | Safety Output: 2 × OSSD / Monitoring Output: 1 × PNP |
| EMR-F21-C | 3 m Cable Type | Safety Output: 2 × OSSD / Monitoring Output: 1 × PNP |
| EMR-F21-MU | M12 Connector Type (Unique Coding) | Safety Output: 2 × OSSD / Monitoring Output: 1 × PNP |
| EMR-F21-CU | 3 m Cable Type (Unique Coding) | Safety Output: 2 × OSSD / Monitoring Output: 1 × PNP |
| Model | Description | Remarks |
| EM12-L3 | M12 Plug Connector Cable | 8P / 3 m – For product connection use |
| EM12-L5 | M12 Plug Connector Cable | 8P / 5 m – For product connection use |
| EM12-L10 | M12 Plug Connector Cable | 8P / 10 m – For product connection use |
| Model | EMR – F21- □ □ |
| Safety Output | 2 × OSSD |
| Rated Voltage | DC 24V |
| Current Consumption | 30 mA |
| Auxiliary Output | 1 × PNP |
| Operating Distance | Safety Operating Distance: 8 mm / Typical Distance: 14 mm |
| Protection Rating | IP67 or higher, EN 60529 compliant |
| Safety Standards | EN ISO 13849-1 / IEC 62061 / IEC 61508 – capable of PLe, Cat.4, SIL3 (when used with a Safety PLC & Safety Controller) |
| Operating Method | RFID type – no dedicated controller required |
